Lab Companion High & Low Temperature Humidity Test Chamber | Technical Specification & Performance Overview

Lab Companion — Your Reliable Partner for Environmental Reliability Testing

With 21 years of professional experience in environmental simulation equipment, Lab Companion focuses on designing and manufacturing high-precision, energy-efficient temperature and humidity test chambers. Our equipment is widely adopted in new energy, semiconductors, automotive electronics, aerospace and military industries for product reliability and weathering validation.

Featuring wide temperature range, high control accuracy, uniform airflow and intelligent PID regulation, Lab Companion test chambers fully comply with global industrial standards including GB/T, IEC, MIL, JIS and GJB, delivering stable and repeatable test results for quality certification and R&D validation.

1. Product Introduction

Lab Companion temperature humidity test chambers simulate high temperature, low temperature, constant temperature & humidity, and alternating humidity-temperature environments. They are used to evaluate product weather resistance, structural stability and environmental reliability.

Equipped with modular refrigeration, multi-sensor fusion control and variable-frequency energy-saving technology, our product lineup covers standard volumes from 80L to 1000L, as well as customized walk-in chambers for large-scale testing.

Product Series

• Standard Temperature & Humidity Chamber — with full humidity control function

• Standard Temperature-only Chamber — for dry high/low temperature cycling

• Rapid Temperature Change Chamber — rate optional: 5℃/min ~ 20℃/min

• Custom Walk-in Environmental Chamber — customized size and performance

2. Standard Technical Specifications

Note: Rapid temperature change models support 5~20℃/min via parallel compressor configuration and high-power refrigeration system.

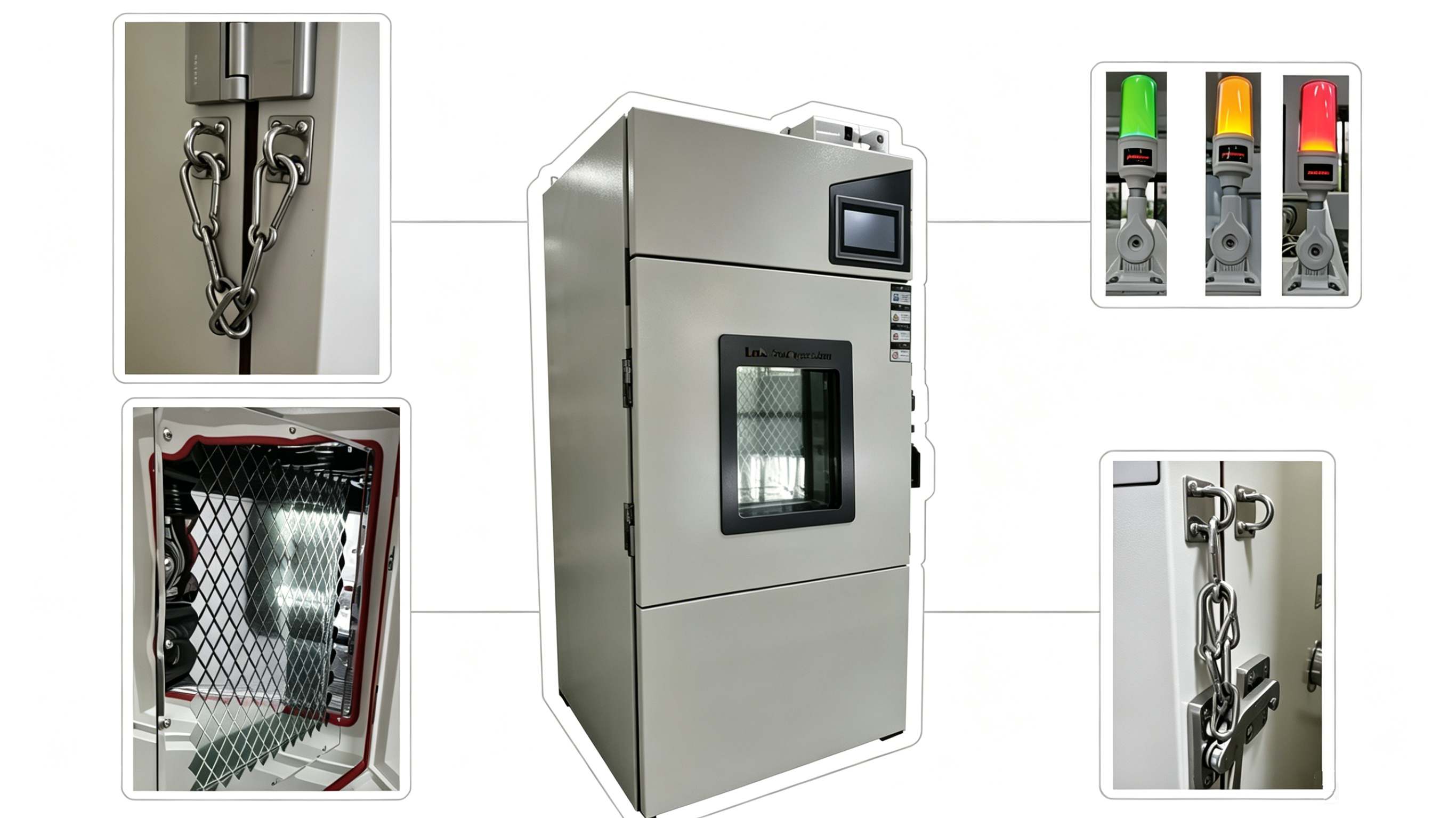

3. Structure & Material

4. Refrigeration, Heating & Humidifying System

4.1 Refrigeration System

Lab Companion adopts advanced cascade dual-stage refrigeration system with imported compressors to ensure stable cooling performance under extreme temperatures.

• Compressor: Fully/half hermetic compressors (Tecumseh / Bitzer)

• Refrigerant: Eco-friendly R404a + R23

• Condenser & Evaporator: High-efficiency fin-type heat exchanger for fast and uniform heat exchange

• Energy-saving Control: Electronic expansion valve + PID adaptive cooling adjustment, 25% lower power consumption than traditional models

4.2 Heating & Humidifying System

• Heater: Nickel-chromium finned heater with SSR non-contact control, fast response and long service life

• Humidifier: Boiler-type steam humidification with auto water supply, no overshoot and fast humidity response

• Water Requirement: Pure water / distilled water (≥10kΩ·cm); optional RO water purification system

5. Q8 Intelligent Control System

Lab Companion self-developed Q8 Touch Controller provides precise regulation, flexible programming and complete data management.

6. Core Advantage: Optimized Air Circulation System

Lab Companion adopts upgraded duct circulation design to eliminate temperature and humidity dead zones, especially suitable for precision electronic components.

• High-flow centrifugal fan + adjustable air deflector for uniform internal airflow

• Adjustable wind speed: 0.5~3.0m/s, avoiding direct strong wind impact on delicate samples

• 30% higher temperature uniformity and 20% faster humidity stabilization than traditional designs

• Ideal for PCB, chips, optical components and low thermal-mass products

7. Full Safety Protection

Multiple redundant protection mechanisms support long-term unattended operation.

• Dual over-temperature protection (mechanical + electronic)

• Compressor over-load, high/low pressure protection

• Phase sequence / phase loss protection

• Heater anti-dry burning protection

• Humidifier water shortage alarm & stop

• Leakage current protection and fan over-current protection

• Optional independent sample over-temperature monitoring

8. Compliance Standards

Lab Companion test chambers comply with worldwide mainstream environmental test standards:

• IEC 60068-2-1 / 60068-2-2 / 60068-2-78 / 60068-2-30

• GB/T 2423.1 / 2423.2 / 2423.3 / 2423.4

• MIL-STD-810H

• GJB 150.3/4/9A

Third-party CNAS calibration certificate is available upon request.

9. Optional Accessories & Customization

• Dry air purge system for low-humidity anti-condensation testing

• Auto RO pure water supply system

• Ultra-low humidity module (5%~20%RH)

• UV / Xenon lamp aging module

• Vibration test interface integration

• Remote APP monitoring & alarm

• MES/Ethernet connection (OPC UA supported)

• Custom walk-in chamber size & performance

10. Application Cases

• New Energy Battery: 10℃/min rapid temperature change chambers perform cell cycling from -40℃ to 85℃, supporting European PPAP certification data submission.

• Automotive Electronics: Multiple walk-in chambers run continuous 3000-hour double 85 (85℃/85%RH) aging tests for automotive camera modules with zero failure.

• Semiconductor Packaging: Low-humidity customized chambers support chip storage & reliability tests with precision stability within ±0.2℃, fully meeting JEDEC requirements.
