From Chips to Modules to Vehicles: Full-Standard Compliance of Lab Companion EMC Shielded Thermal Cycling Chambers

1. Standard-Driven Testing Upgrade for Semiconductor & Automotive Electronics

Semiconductor and automotive electronic reliability testing is governed by two globally authoritative standard systems: the JEDEC JESD22 series for semiconductor components and theAEC-Q series for automotive-grade electronics. As the core mandatory environmental stress test for both standards, thermal cycling and rapid temperature change testing verifies the long-term durability and structural stability of electronic products under extreme temperature conditions.

With continuous tightening of industrial certification specifications, conventional thermal chambers can no longer meet upgraded compliance requirements. JEDEC JESD22-A104 imposes strict constraints on test temperature ranges and temperature ramp rates, while AEC-Q100 strictly regulates ramp speed, extreme temperature dwell time and cycle counts for automotive qualification. The combination of thermal cycling stress and EMC shielding testing creates dual technical challenges that traditional testing equipment cannot address, resulting in inaccurate data and poor test repeatability.

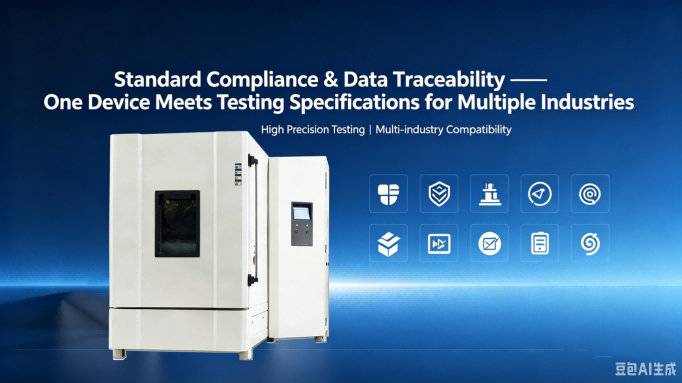

The Lab Companion EMC Shielded Rapid Thermal Cycling Chamber is professionally developed for full compliance with JEDEC and AEC-Q global standards. Serving as an all-in-one composite test platform, it delivers standardized, high-precision environmental simulation to support full-process reliability verification covering semiconductor chips, electronic modules and complete vehicle electronic systems.

2. JEDEC JESD22-A104 Standard Requirements for Semiconductor Testing

2.1 Core Specifications of JESD22-A104 Thermal Cycling Test

JEDEC JESD22-A104 is the universal industry benchmark for semiconductor thermal cycling validation. It is designed to evaluate the fatigue resistance of IC packages, bonding wires, solder joints and molding compounds under repeated high and low temperature alternating stress.

The standard defines clear test parameters: a temperature range of -65℃ to +150℃, 10 to 15 minutes of dwell time at extreme temperatures, a minimum ramp rate of 15℃/min, and up to 1000+ continuous thermal cycles. This test effectively exposes common latent failures including package cracking, bond wire fracture, molding delamination and solder ball detachment.

It mandates air-to-air thermal cycling with stable and controllable temperature ramp speeds, ensuring tests capture cumulative thermal fatigue effects rather than instantaneous thermal shock. This requires test equipment to deliver excellent temperature accuracy, uniform internal temperature distribution and consistent ramp stability.

2.2 Precision Requirements for Modern Semiconductor Reliability Testing

Today’s semiconductors feature high integration, miniaturization and high operational performance, leaving extremely low tolerance for testing errors. JEDEC official certification demands highly repeatable, traceable and authoritative test data.

Traditional thermal chambers suffer from uneven temperature fields and unstable ramp control, leading to inconsistent test results, repeated certification trials and delayed product launches. To resolve these pain points, semiconductor testing equipment must meet three core criteria: full coverage of JEDEC standard temperature ranges, high-precision constant temperature control for reliable certification data, and efficient rapid thermal cycling to accelerate R&D and mass production screening.

3. Lab Companion’s Full Compliance with JEDEC Industrial Standards

3.1 Ultra-Wide Temperature Range with Ample Performance Margin

Lab Companion EMC shielded rapid thermal cycling chambers adopt a premium temperature design, with a standard test range of -70℃ to +150℃ and an ultra-low temperature limit of -80℃. This fully covers the -65℃ to +150℃ test range specified by JEDEC JESD22-A104. The reserved low-temperature performance margin ensures stable long-term operation even during high-frequency cyclic testing.

Standard units achieve a temperature fluctuation of ±0.5℃ and a temperature uniformity of ±2.0℃. For high-end semiconductor precision testing scenarios, dedicated models support ultra-high precision control with ±0.2℃ fluctuation and ±0.4℃ uniformity. The optional AI intelligent temperature control system automatically adjusts operating parameters based on component heat capacity, ensuring consistent compliance with JEDEC standard requirements.

3.2 Stable Ramp Rate Exceeding JEDEC 15℃/min Mandatory Standard

Lab Companion chambers support adjustable linear and non-linear temperature ramp rates ranging from 5℃/min to 25℃/min. The mainstream model only takes 6.25 minutes to complete heating from -40℃ to 85℃, delivering a stable ramp rate above 15℃/min to fully meet the mandatory requirements of JEDEC JESD22-A104.

For extreme stress screening and high-strength aging tests, an optional liquid nitrogen cooling system supports ramp rates over 20℃/min. All equipment is CE certified, providing qualified and reliable hardware support for semiconductor enterprises’ JEDEC certification applications.

3.3 Full-Process Adaptation for Chip R&D and Final Testing

Lab Companion provides semiconductor-specific thermal cycling solutions that cover the entire industrial chain, including chip design verification, packaging testing and mass production reliability screening. Equipped with a dual-stage cascade refrigeration system and optimized air duct structure, the equipment delivers ultra-stable temperature field performance and supports 24/7 unattended continuous cyclic testing.

The built-in high-precision data logging system fully records real-time temperature curves and equipment operation logs, enabling complete data traceability to support factory quality management and third-party certification audits.

4. AEC-Q Standard Compliance for Automotive-Grade Electronic Verification

4.1 Core Thermal Cycling Specifications of AEC-Q100

AEC-Q100 is the fundamental stress test standard for automotive-grade integrated circuits. It specifies two levels of thermal cycling conditions: a conventional range of -55℃ to +125℃ and a harsh extended range of -65℃ to +150℃. To ensure complete thermal saturation of test samples, the standard requires 10–20 minutes of dwell time at extreme temperatures, a 10–15℃/min temperature ramp rate, and a minimum of 1000 cycles for formal automotive qualification.

The widely adopted TC3 test condition (-40℃ to +125℃, 1000 cycles) poses stringent requirements on equipment’s long-term operational stability, ramp control accuracy and internal temperature uniformity.

4.2 Full Coverage of AEC-Q and ISO Automotive Standards

Lab Companion EMC thermal cycling chambers are uniquely optimized for automotive electronic testing. They fully comply with AEC-Q100 (chip-level certification), AEC-Q104 (module-level certification) and ISO 16750-4 (vehicle environmental reliability) standards. The intelligent Q8 controller is preloaded with global mainstream automotive test profiles. Users can initiate standardized testing with one click, with the system automatically matching temperature range, ramp rate, dwell time and cycle parameters.

4.3 Solving the Thermal-EMC Coupling Pain Point in Automotive Testing

Unlike consumer electronics, automotive electronic components exhibit highly variable electrical performance under temperature fluctuations. Low temperatures trigger reference voltage drift in MCU/SoC chips, crystal frequency deviation and PLL jitter deterioration. High temperatures raise MOS junction capacitance, transformer winding resistance and magnetic material loss. Rapid thermal cycling further causes CTE mismatch, solder micro-cracks and unstable connector contact resistance, which are primary causes of long-term failure in vehicle electronic systems.

Lab Companion’s core competitive advantage lies in its integrated thermal cycling and EMC shielding design. Test samples remain in a complete, stable temperature field while external signal interfaces connect to professional testing instruments. This enables in-situ EMC pre-compliance testing (radiated and conducted emission) during thermal cycling, avoiding test errors caused by temperature field interruption and fully meeting the full-lifecycle reliability verification requirements of AEC-Q standards.

5. Technical System Supporting Dual-Standard Full Compliance

5.1 Systematic Full-Parameter Standard Matching

Lab Companion achieves systematic and comprehensive standard adaptation, rather than superficial parameter compliance, fully satisfying all core assessment criteria of global semiconductor and automotive testing standards:

• Temperature Range: -70℃ to +150℃, fully covering all extreme test conditions of JEDEC and AEC-Q standards

• Temperature Ramp Rate: 5–25℃/min adjustable, perfectly matching JEDEC (≥15℃/min) and AEC-Q (10–15℃/min) rate requirements

• Temperature Accuracy: Multi-level precision from ±0.2℃ to ±0.5℃, exceeding the basic requirements of international standards

• Temperature Uniformity: ≤±2.0℃ for standard models; ≤±0.4℃ for high-precision semiconductor models

• EMC Shielding Performance: Over 50dB shielding effectiveness in the 0.5–3.0GHz frequency band, supporting synchronous thermal cycling and EMC testing

5.2 Customizable Full-Cycle Technical Services

Lab Companion provides personalized configuration and customized solutions for diverse industrial test scenarios. Optional enhanced functions include humidity control, nitrogen purging and probe station reserved interfaces. Equipped with a Siemens PLC intelligent control system, the chamber supports custom programming and remote real-time monitoring.

Standard chamber volumes range from 100L to 1000L, with customized oversized chambers up to 8000L available. This flexible size range adapts to testing scenarios from single tiny chips to large automotive modules. Preloaded global standard test profiles effectively reduce programming costs and shorten the certification cycle for global manufacturers.

6. All-in-One Solution for Full Industrial Chain Testing

From JEDEC-qualified semiconductor chip testing to AEC-Q-compliant verification of automotive modules and vehicle electronic systems, theLab Companion EMC Shielded Rapid Thermal Cycling Chamber serves as a unified, full-standard and full-scenario test platform.

Integrating ultra-wide temperature coverage, adjustable high-speed thermal cycling, high-precision temperature control and high-efficiency EMC shielding, the equipment eliminates the functional limitations of traditional single-function test devices. It is a universal composite stress test platform developed based on global semiconductor and automotive electronic standards, rather than a dedicated device for a single specification.

For global electronic manufacturers seeking one-stop compliant solutions from R&D verification to mass production certification, Lab Companion effectively shortens product qualification cycles, ensures consistent and accurate test data, and strengthens core market competitiveness in the global industry.
